Two monitors connected, but only one shows a picture: Hardly any aspect of Apple Silicon causes as much confusion as external display support. That's because the number of screens a Mac can drive simultaneously is determined not by the number of ports, but by the chip inside. The range extends from a single 4K display on the MacBook Neo to eight monitors on the Mac Studio.
On the outside, the USB-C ports on modern Macs look almost identical, but technically they are worlds apart. While a Mac Studio drives entire video walls, a MacBook Air with M1 chip simply gives up at the second external monitor – no matter how many adapters are in between. Apple documents these limits precisely, but spreads the information across support documents for each product line and the technical specifications of the individual models, for example for the MacBook Air, the iMac, and the MacBook Pro. This overview brings all the figures together: from M1 to M6, from the MacBook Air to the Mac Pro, including the models of the iMac with M6 and MacBook Pro unveiled in October 2026.
Key Facts at a Glance
- The number of external displays a Mac can drive is determined by the chip, not the number of ports.
- In the MacBook Air and MacBook Pro, base chips from M4 upwards can support two external displays in addition to the built-in screen, while M1 and M2 chips can only support one.
- Pro chips support two to three displays, Max chips support four (notebook) or five (Mac Studio), and Ultra chips from the M2 Ultra onwards support eight displays.
- With the iMac M6, the configuration is the deciding factor: The 10-core model controls one external display, the 12-core model two.
- Docks and hubs only bundle existing display pipelines; they do not increase the chip's maximum capacity.
The chip decides, not the ports
The number of displays a Mac can support is fixed in the chip and cannot be expanded via software or accessories. With the base M1 and M2 chips, exactly one external display is possible in addition to the built-in screen. The M3 allows a second, but only with the lid closed and the built-in display off. Only since the M4 generation have the base chips been able to support two external displays simultaneously with the built-in screen; the Pro, Max, and Ultra chips increase this number further.
This leads to the most important basic rule: Docks, hubs, and daisy-chaining merely bundle existing pipelines onto a single port, but do not increase the maximum number of displays. An M2 MacBook Air stays limited to one external display even on the most expensive Thunderbolt dock. Apple also recommends always connecting the display with the highest resolution first, so the available bandwidth is distributed optimally.
MacBook Air: From the one-display limit to two monitors
The evolution of the base chips is most evident in the MacBook Air. The M1 and M2 chips drive exactly one external display with up to 6K resolution at 60 Hz. The M3 officially supports two external monitors – but only in clamshell mode (with the lid closed), with macOS Sonoma 14.3 or later, an external keyboard with mouse or trackpad, and active power. This limitation was removed with the M4: two external monitors can now be used in addition to the built-in screen.
| Chip | External Displays | Maximum configuration |
|---|---|---|
| M1 (2020) | 1 | 1 × 6K at 60 Hz |
| M2 (2022) | 1 | 1 × 6K at 60 Hz |
| M3 (2024) | 1 (2 with the lid closed) | 6K/60 plus 5K/60 in clamshell mode |
| M4 (2025) | 2 (in addition to the internal display) | 2 × 6K/60 or individually up to 8K/60, 5K/120, 4K/240 |
| M5 (2026) | 2 (in addition to the internal display) | 2 × 6K/60 or 4K/144; individually up to 8K/60, 5K/120, 4K/240 |
The MacBook Air with M5 inherits the display specifications of its M4 predecessor; both monitors can also be operated via a single Thunderbolt port.
MacBook Pro: From the 13-inch limit to a four-display workstation
Within the MacBook Pro lineup, the number of supported displays depends heavily on the chip tier. The earlier 13-inch models with the M1 and M2 chips shared the single-display limit with the MacBook Air of that era. The 14-inch model with the M3 base chip only received clamshell support for a second monitor later with macOS Sonoma 14.6. Starting with the M4 generation, even the base chip could drive two external displays when the lid was open. With the M5 Pro, Apple raised the Pro tier to three, while the Max chips remained at four. The MacBook Pro with the M6 remained at two external displays, and the models with the PROLED XDR display, the M5 Pro and M5 Max, adopted the limitations of the previous Pro models.
| Chip | External Displays | Maximum configuration |
|---|---|---|
| M1 / M2 (13 inch) | 1 | 1 × 6K at 60 Hz |
| M1 Pro | 2 | 2 × 6K at 60 Hz |
| M1 Max | 4 | 3 × 6K (Thunderbolt) plus 1 × 4K (HDMI) |
| M3 (14 inch) | 1 (2 with the lid closed) | 6K/60 plus 5K/60 in clamshell mode, from macOS 14.6 |
| M2 Pro / M3 Pro | 2 | 2 × 6K/60; via HDMI individually up to 8K/60 |
| M2 Max / M3 Max | 4 | 3 × 6K (Thunderbolt) plus 1 × 4K/144 (HDMI) |
| M4 / M4 Pro | 2 (in addition to the internal display) | 2 × 6K/60 or individually up to 8K/60 |
| M4 Max | 4 (in addition to the internal display) | 4 × 6K/60 or 2 × 8K/60 |
| M5 | 2 (in addition to the internal display) | 2 × 6K/60 or individually up to 8K/60 |
| M6 (2026) | 2 (in addition to the internal display) | 2 × 6K/60 or 4K/165; individually up to 8K/60, 5K/120 or 4K/240 |
| M5 Pro (Mini-LED and PROLED XDR) | 3 (in addition to the internal display) | 3×6K/60; or 1 × 8K/60 (5K/120, 4K/240) plus 1 × 5K/120 (4K/200) |
| M5 Max (Mini-LED and PROLED XDR) | 4 (in addition to the internal display) | 4 × 6K/60 or 2 × 8K/60 (5K/120, 4K/240) |
One difference between the two display variants is the refresh rate: With all displays in use, 4K monitors on the models with PROLED XDR displays run at up to 165 Hz, while on the Mini-LED models with the M5 Pro and M5 Max, they run at up to 144 Hz. The MacBook Pro with the M6 also achieves 165 Hz. A single Thunderbolt port can drive up to two displays on the M6, three on the M5 Pro, and all four on the M5 Max. The comparison of PROLED XDR and Mini-LED displays reveals what else differentiates the two display variants.
MacBook Neo: One display on the right port
The MacBook Neo, with its A18 Pro chip, occupies a special position, as the chip originates from the iPhone and features a correspondingly slim display architecture. According to Apple's support documentation, the notebook supports exactly one external display with up to 4K resolution at 60 Hz, in addition to the built-in screen. Closing the lid does not unlock any additional monitors.
The correct connection is crucial: Only the left USB-C port – a USB 3 port with DisplayPort 1.4 – outputs a video signal. If your external monitor remains black on the Neo, it's almost always connected to the wrong port. The device completely lacks Thunderbolt, which is why pure Thunderbolt displays won't work, and macOS will display a warning message when you connect them. Displays that support both Thunderbolt and DisplayPort 1.4 or USB 3, however, will work. Apple doesn't list its Studio Displays for the MacBook Neo in its compatibility lists, and the port doesn't output anything higher than 4K at 60 Hz anyway.
Mac mini: Three displays in a compact form factor
As a desktop, the Mac mini has no built-in display, so all of its pipelines are available for external monitors. The original M1 model combines a 6K display on the Thunderbolt port with a 4K monitor on the HDMI port. Since the M4 generation, even the base model handles three external displays – as many as only the Pro variant managed before.
This number remains unchanged with the new generation: the M6 and M5 Pro still have three displays. What is new, however, are the possible refresh rates, as 4K can now be driven at up to 165 Hz. Apple also explicitly mentions support for variable refresh rates (VRR).
| Chip | External Displays | Maximum configuration |
|---|---|---|
| M1 (2020) | 2 | 1 × 6K (Thunderbolt) plus 1 × 4K (HDMI) |
| M2 (2023) | 2 | 6K plus 5K (Thunderbolt) or 6K plus 4K (HDMI) |
| M2 Pro (2023) | 3 | 2 × 6K plus 1 × 4K; via HDMI individually up to 8K/60 |
| M4 (2024) | 3 | 2 × 6K plus 1 × 5K; individually up to 8K/60, 5K/120, 4K/240 |
| M4 Pro (2024) | 3 | 3 × 6K/60 or 4K/144 |
| M6 (2026) | 3 | 2 × 6K/60 or 4K/165 plus 1 × 5K/60; individually up to 8K/60, 5K/120, 4K/240 |
| M5 Pro (2026) | 3 | 3 × 6K/60 or 4K/165; individually up to 8K/60, 5K/120, 4K/240 |
One difference between the two new models concerns port distribution: The M6 can drive up to two displays via a single Thunderbolt port, while the M5 Pro can drive all three. Those using a dock should keep this in mind. A comparison of the Mac mini M6 and M4 reveals what else has changed compared to the previous generation.

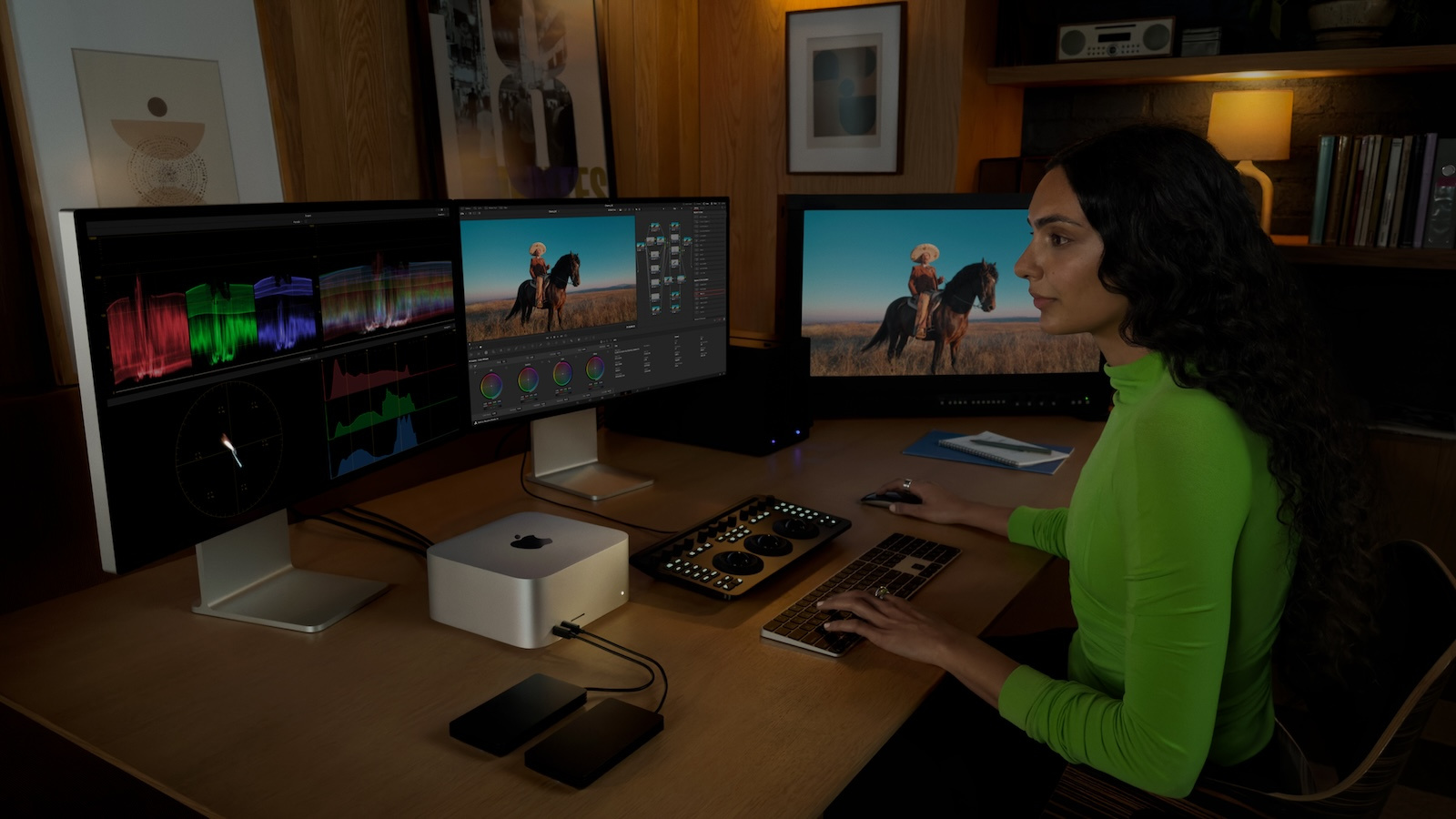

Mac Studio and Mac Pro: The eight-display class
The Max and Ultra chips in the desktops are in a league of their own. The Max variants of the Mac Studio can drive five external displays at any given time, as can the first Ultra chip, the M1 Ultra. Starting with the M2 Ultra, the Ultra chips double this to eight. This configuration remains unchanged for the 2026 generation: the M5 Max continues to support five displays, and the M5 Ultra eight. As with the Mac mini, the innovation lies not in the number of displays, but in the refresh rates – 4K now runs at up to 165 Hz instead of 144 Hz.
| Model | External Displays | Maximum configuration |
|---|---|---|
| Mac Studio M1 Max / M1 Ultra (2022) | 5 | Thunderbolt displays up to 6K at 60 Hz |
| Mac Studio M2 Max (2023) | 5 | 4 × 6K (Thunderbolt) plus 1 × 4K (HDMI) |
| Mac Studio M2 Ultra (2023) | 8 | 8 × 4K; up to 6 × 6K at 60 Hz |
| Mac Studio M4 Max (2025) | 5 | 4 × 6K plus 1 × 4K; up to 2 × 8K/60 |
| Mac Studio M3 Ultra (2025) | 8 | 8 × 6K at 60 Hz; up to 4 × 8K/60 |
| Mac Studio M5 Max (2026) | 5 | 4 × 6K/60 or 4K/165 plus 1 × 5K/60 (HDMI); up to 2 × 8K/60 |
| Mac Studio M5 Ultra (2026) | 8 | 8 × 6K/60 or 4K/165; up to 4 × 8K/60 |
| Mac Pro M2 Ultra (2023) | 8 | 8 × 4K; individually up to 8K/60 via HDMI |
On the Ultra models, Apple organizes the ports into two groups, each supporting a maximum of four displays. An 8K display connected via HDMI occupies the bandwidth of two displays within its group, so users wanting to maximize the bandwidth must distribute their monitors across both groups. For the full eight displays, daisy-chaining or a supported dock connected to the front Thunderbolt ports is required. In contrast, the front USB-C ports on the Mac Studio Max models do not output a video signal, while the Ultra model features full-fledged Thunderbolt ports on the front as well.
iMac: Here the ports matter, for once
The iMac is the only Mac where the configuration directly influences the number of displays it can support. The M1 and M3 models support one external display at up to 6K resolution at 60Hz, regardless of the number of ports. Since the M4, Apple has differentiated display support based on configuration, and this remains the case with the M6 iMac: the 10-core model with two ports supports one external display, while the 12-core model with four ports supports two. New features of the M6 include a higher refresh rate of up to 165Hz at 4K resolution, and the 12-core model can now drive both displays via a single Thunderbolt port.
| Model | External Displays | Maximum configuration |
|---|---|---|
| iMac M1 (2021) | 1 | 1 × 6K at 60 Hz |
| iMac M3 (2023) | 1 | 1 × 6K at 60 Hz |
| iMac M4 (2024), two ports | 1 | 1 × 6K at 60 Hz |
| iMac M4 (2024), four ports | 2 | 2 × 6K/60 or 1 × 8K/60 individually |
| iMac M6 (2026), 10-core, two ports | 1 | 1 × 6K/60 or 4K/165 |
| iMac M6 (2026), 12-core, four ports | 2 | 2 × 6K/60 or 4K/165; individually up to 8K/60, 5K/120 or 4K/240 |
The Most Common Pitfalls
Docks don't increase the limit. By far the most common misconception: A Thunderbolt dock with two HDMI outputs doesn't turn an M1 MacBook Air into a dual-display device. The chip's limitation always applies. Those who still want to circumvent it end up using software solutions like DisplayLink, which compresses the video signal and transmits it over USB, for example with a dual-monitor docking station from Plugable. This works well for office work, but it's not a native solution and reaches its limits with video and fast-moving image content.

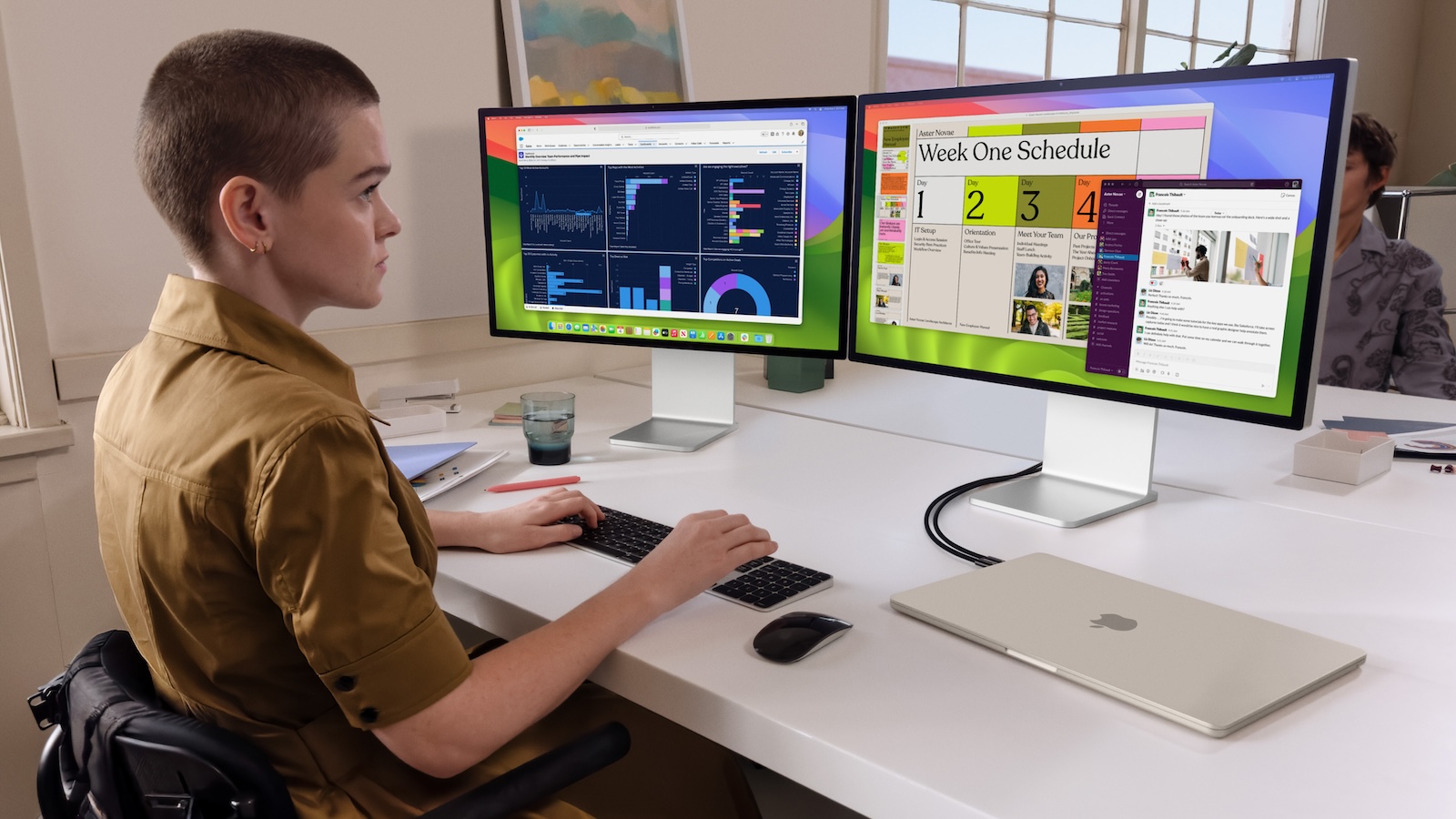

The clamshell rule of the M3 generation. The MacBook Air and 14-inch MacBook Pro with the base M3 chip show the second external display only with the lid closed. When it's opened, the picture disappears – this isn't a defect, but documented behavior. You also need external input devices, a power supply, and at least macOS 14.3 (Air) or 14.6 (MacBook Pro).
The wrong port. Not every USB-C port outputs video: on the MacBook Neo, only the left port works, while on the Mac Studio with a Max chip, the front USB-C ports have no display output. A black screen is therefore often just a matter of plugging into a different port.
HDMI is not always HDMI. The HDMI ports on early Apple Silicon devices – such as on the Mac mini M1 – are limited to 4K at 60Hz. Newer models output up to 8K at 60Hz or 4K at 240Hz over HDMI. Anyone who needs high refresh rates is better off using Thunderbolt or DisplayPort on older Macs.
Order matters. Apple recommends connecting the display with the highest resolution first. In addition, the scaled resolutions offered in System Settings can vary depending on system resources and the combination of displays – the maximum values in the tables always refer to the native resolution.
Check your Mac's display limit
The quickest way to check your device's official specifications is through macOS itself: Open System Preferences, click "Help" in the menu bar, and select the entry for your Mac's specifications. The Display Support section lists the maximum number of displays and supported resolutions. This same information can also be found in Apple's support documents for each product line and in the technical specifications on the Apple website – for current models, this also indicates how many displays can be connected via a single Thunderbolt port.
Choose the Mac based on the chip, not the ports
Anyone planning a multi-monitor setup should first look at the chip and only then at ports, docks, and cables. I consider this the most important takeaway from all the spec sheets: an expensive dock doesn't change the limitations of an M1 or M2, while a MacBook Air with an M5 can easily handle two monitors without any additional workarounds. While macOS 27 introduced higher resolutions on ultrawide displays, such as 5K at 120 Hz, as well as permanently saved display configurations, this doesn't change the maximum number of monitors per chip. If you're planning on using more than two external displays, you'll need a Pro or Max chip for your notebook; for a desktop, a Mac mini is sufficient.
How many monitors are connected to your Mac – and has your chip's limitations ever caught you off guard? Tell us about your setup in the comments.
The matching products – 4K USB-C monitors with Power Delivery, DisplayPort cables and DisplayLink docks – are collected in our Amazon idea list External Displays for Mac: Monitors, Cables & Docks.
Frequently Asked Questions: External Displays on Mac
That depends on the chip: M1 and M2 drive one external display with up to 6K at 60Hz. The M3 supports two external monitors, but only with the lid closed. Since the M4, two external displays run alongside the built-in screen – without any restriction at all.
With the base M1 and M2 chips, only one external display is supported in addition to the built-in screen. The second monitor will therefore remain dark, regardless of the adapter or dock used. This is not a defect or a setting issue, but a limitation of the chip.
No – docks and hubs only bundle existing pipelines; they don't increase the chip's maximum. Those who still want to get around the limit can turn to software solutions like DisplayLink, which transmit the picture signal in compressed form over USB. That's sufficient for office work, but it runs into limits with video and fast-moving on-screen content.
In clamshell mode, the MacBook runs with the lid closed and the internal display turned off. On the MacBook Air with M3 and the 14-inch MacBook Pro with M3, this is the only way to use a second external display. It requires a power supply, external input devices, and macOS 14.3 or 14.6 respectively. When the lid is opened, the second monitor turns off.
Three external displays, regardless of the chip: This applies to the M4 as well as the newer M6 and M5 Pro models. A single display can run at up to 8K resolution at 60 Hz. The difference lies in the distribution – the M6 drives two displays via a single Thunderbolt port, while the M5 Pro drives all three.
Exactly one, with up to 4K at 60Hz – in addition to the built-in screen. The video signal is available only on the left USB-C port; the device lacks Thunderbolt entirely. Closing the lid does not unlock any further monitors.
The quickest way is via macOS itself: Open System Preferences, click "Help" in the menu bar, and select the entry with your Mac's specifications – the section on display support is located there. The same values can be found in Apple's support documents for the respective product line and on the product pages of current models.
