AirPods have been among the most popular wireless headphones for years. Besides sound, design, and battery life, ease of use plays a key role. Gesture control is an integral part of this, but it isn't always perceived as optimal. New evidence from a recent patent application shows that Apple is working on significantly more precise and faster gesture recognition for future AirPods.

The development of AirPods goes back further than is often assumed. The first known patents for this product concept date back to 2011. Since then, Apple has regularly explored new ways to make using AirPods more intuitive. In the past, this has included ideas such as camera-based gesture recognition, which have not yet been implemented. The patent application now published takes a different, technically unusual approach.

Previous gesture control on AirPods

Current AirPods use a touch surface built into the earbud as a separate system. While this solution is generally reliable, it has several drawbacks. Capacitive sensor electrodes require space and increase weight. Furthermore, they restrict internal design, as other components must be accommodated in a very limited space.

Another point of criticism is the response time. When tapping or swiping on the handle, the desired action may be executed with a slight delay. This very problem is also addressed in the patent application, which refers to an excessively long recognition time for user gestures.

The new idea behind the patent application

In the patent application titled "Gesture Recognition Based on Antenna Impedance Measurements," Apple describes an approach that could eliminate the need for separate touch sensors. Instead, the existing radio antennas of the AirPods would be used for gesture recognition.

These antennas are always active anyway. They receive audio data such as music and simultaneously transmit audio signals from the microphone back to the connected device. These transmissions occur very frequently and with high priority, as a stable audio connection is crucial.

Apple notes that this data transfer rate is significantly higher than the update rate of capacitive sensors. While gesture controls have to wait to be polled, the antenna processes run continuously. This is precisely where the technical advantage lies.

Gesture recognition via antenna impedance

The core idea is to measure the impedance of the antennas and evaluate changes in this impedance. Such a change can indicate the presence of an external object nearby, such as a finger.

This method becomes particularly effective when two antennas are integrated into the stem of the AirPods. This allows not only the detection of simple touches, but also their timing and direction. The rate of change in impedance and the sequence of these changes provide additional information.

A practical example from the patent describes an upward swiping motion on the handle. The beginning and end of the movement could be clearly identified. Simultaneously, the direction of the gesture would be recorded, allowing for unambiguous interpretation. This would make it possible, for example, to increase or decrease the volume without relying on traditional touch sensors.

Advantages over previous solutions

Eliminating capacitive sensors would allow AirPods to be built more compactly and lighter. This would also free up space for other components or allow existing parts to be arranged more efficiently. Another advantage is reduced latency. Since the antennas already operate at a high frequency, gesture recognition could react faster than before.

Apple also emphasizes that this technology is not limited to AirPods. The patent application attempts to demonstrate that the principle is transferable to other devices as well. This primarily serves to define the scope of the patent as broadly as possible.

Scope and classification of the patent

The patent application is exceptionally comprehensive, comprising approximately 13,000 pages. It contains numerous technical details and diagrams for impedance measurement with different materials. The focus is clearly on technical feasibility and the precise evaluation of even the smallest changes.

Nevertheless, as is always the case with Apple patents: A patent being granted does not automatically mean that the technology will actually be used in future AirPods. Apple files hundreds of patents every year. Many of these remain theoretical concepts or serve merely as protection for potential developments.

Technical experiments with the AirPods

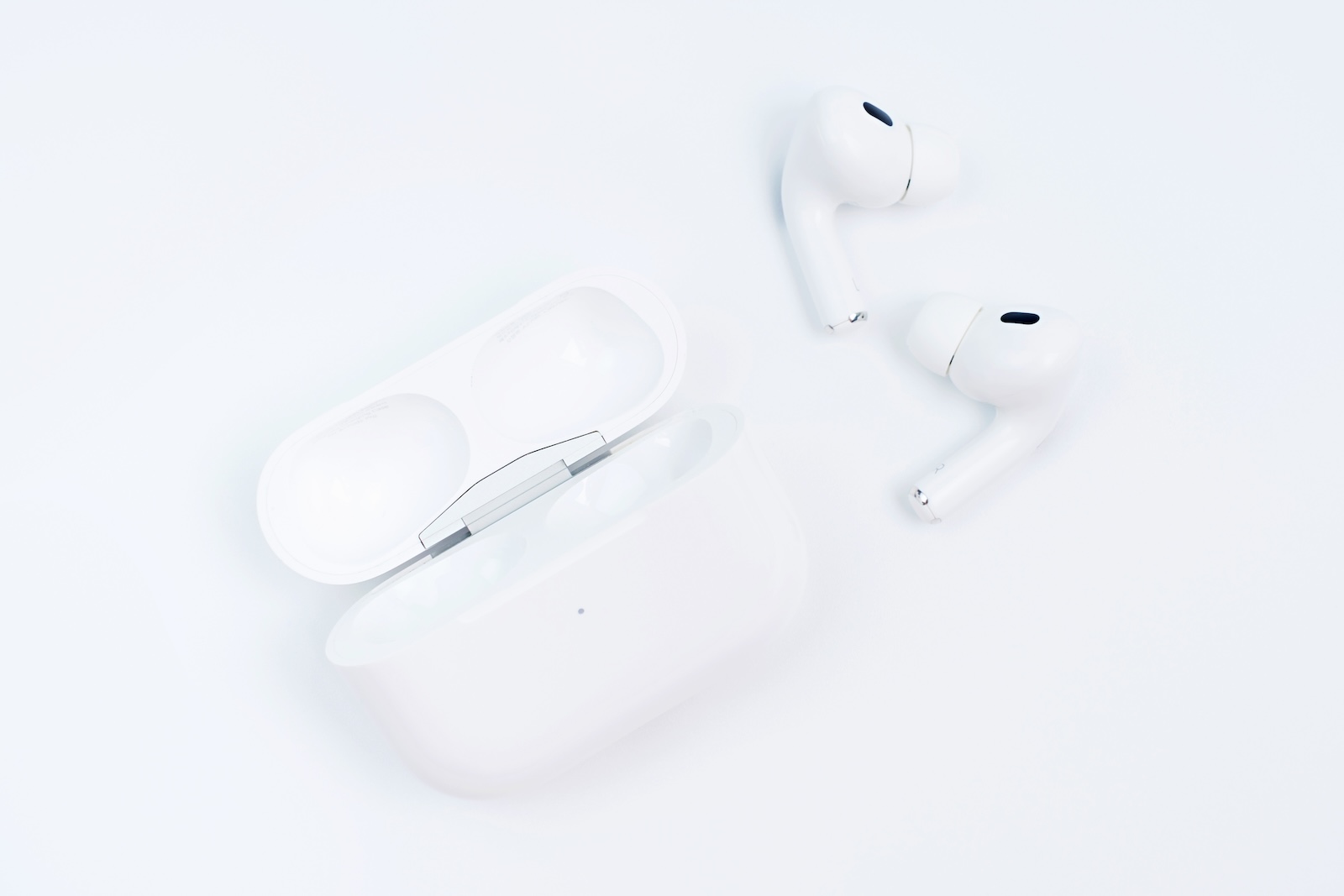

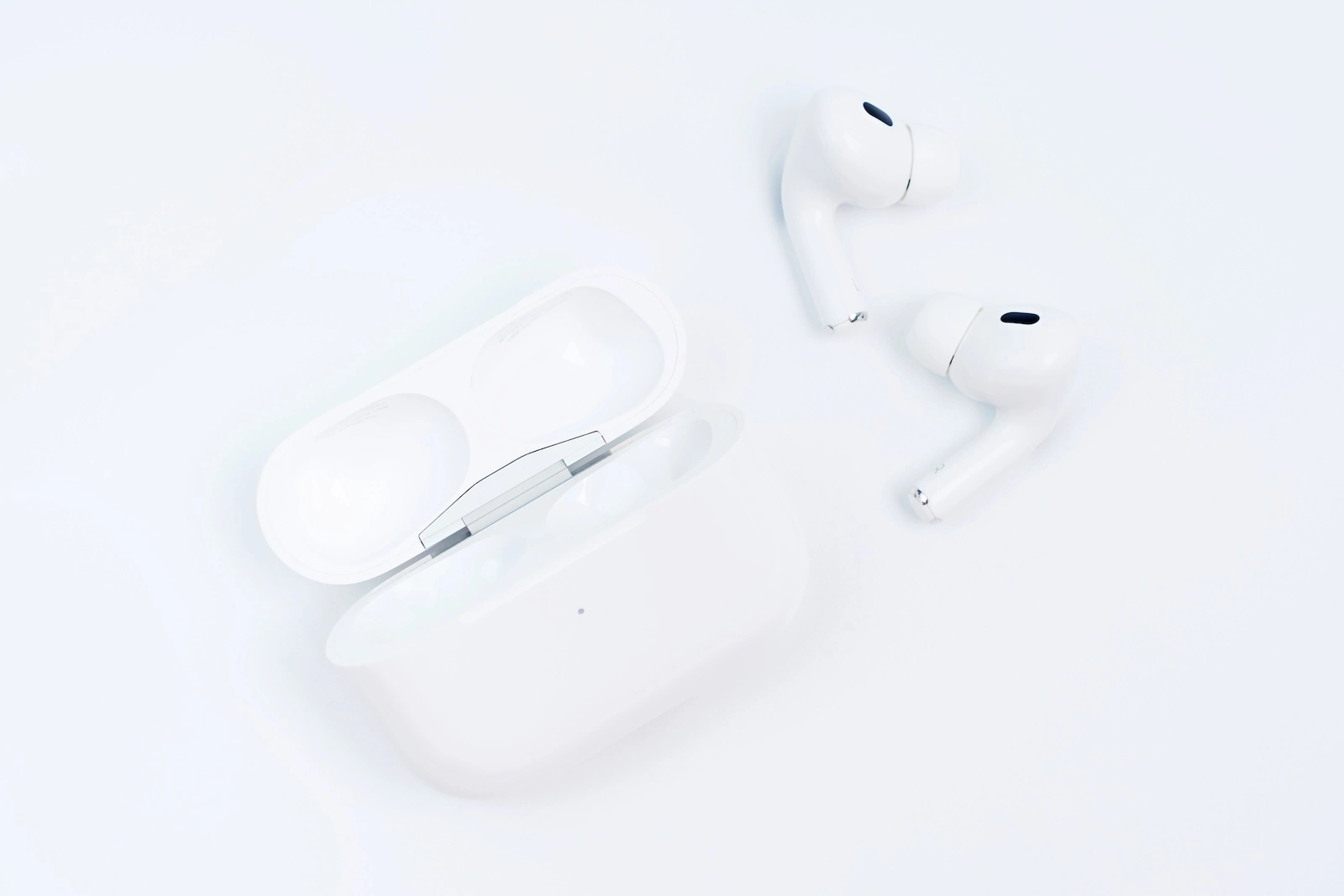

The idea of gesture recognition via the AirPods' wireless antennas demonstrates how intensively Apple continues to work on the further development of its headphones. Whether this technology will ever appear in a production product remains to be seen. However, it's clear that Apple regularly explores even very unusual approaches. These include not only new gesture controls, but even concepts like using lasers for lip reading. The company certainly isn't lacking in new ideas for AirPods. The best products for you: Our Amazon storefront offers a wide selection of accessories, including those for HomeKit. (Image: Shutterstock / TatianaKim)
